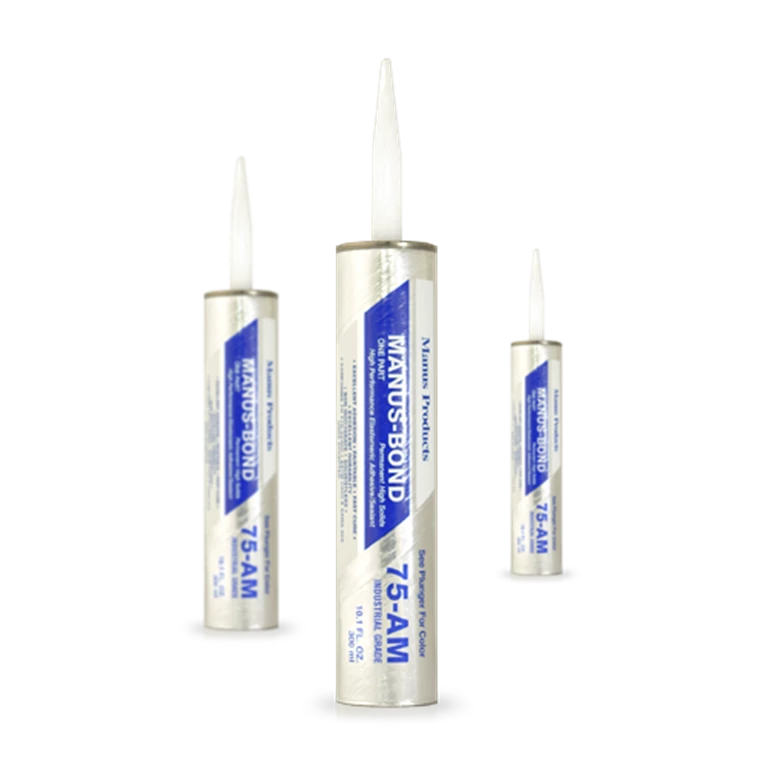

Manus-Bond 75-AM NSF61
Manus-Bond 75-AM NSF61 Certified Sealant/Adhesive exhibits excellent adhesion to many substrates including brass, wood, aluminum, stainless steel, Kynar®, Galvalume®, painted surfaces, vinyl, glass, steel, granite, marble, concrete, wood, glass fused steel and many plastics. This product is available in a Long Open Time (LOT) and Fast Open Time (FOT). 75-AM NSF61 is highly weather resistant and can be painted with most paints. Manufactured from high grade polyether technology 75-AM NSF61 contains no solvents or isocyanates and is non-yellowing. Conforms to ASTM C920, Type S, Grade NS, Class 25, Use NT. USDA Accepted. Tested and Certified by NSF61 for immersive use in Potable Water Tanks since 1998.
Technical Details
Specific Gravity
1.56-1.60
Color
White, Gray and Black. Other colors available upon request
“FOT” Skin Time @ 75oF & 50%RH
<30 minutes
Cure Rate @ 75oF & 50%RH for 24 hours
0.125”
Hardness, Shore A
35-40
Sag
Nil
Viscosity
450,000 – 500,000 cps
100% Modulus
ASTM D412 *Rate = 2”/minute
127 psi
Tensile Strength
ASTM D412 *Rate = 2”/minute
210 psi
% Elongation
350%
Lap Shear Strength
ASTM D1002 *Rate = 2”/minute
215 psi
Peel Strength
ASTM C794
18 lbf on Glass (no adhesion loss)
17 lbf on Aluminum (no adhesion loss)
13 lbf on Mortar (no adhesion loss)
Service Temperature Range
-75oF to 300oF
Movement Capability
+25%
UV Resistance
Excellent
VOC Content
11 grams/liter
Compatible Materials
Additional Details
Colors
White, Gray and black. Other colors available upon request.
Packaging
10.1 and 28fl.oz. cartridges, 10 and 20 fl.oz. sausage packs, 1, 5 and 52 gallon containers
Surface Preparation
Apply to clean, dry surfaces free of contaminants that can adversely affect adhesion. Remove all old sealant before applying product. Some substrate materials may not be compatible with this product. Testing substrate compatibility with this product before full application is recommended.
Painting
Cured product may be painted with most industrial & consumer paints. Testing prior to painting is recommended.
Storage Life
For maximum shelf life, store unopened product at or below 80oF.
12 months = cartridges and sausage packs
6 months = 1, 5 and 55 gallon containers
Precautions
Some applications may not be compatible with this product. Testing suitability for intended application before proceeding with full application is recommended. Use with adequate ventilation. Inhalation of vapor during application and cure may cause slight eye or throat irritation. In case of contact with eyes, lips, or mouth, flush thoroughly with water. If irritation persists, consult a physician. Avoid repeated, prolonged contact with skin. See MSDS for additional information. KEEP OUT OF REACH FROM CHILDREN.
Technical Service
Manus technical representatives are always available to provide assistance. Please contact our Technical Service Department with your questions or requests for specific applications.
Limited Warranty
Any goods prove defective will be replaced or the purchase price refunded. The limited warranty described herein is in lieu of any other warranty, expressed or implied, including any implied warranty of merchantability or fitness for a particular use. The user shall determine suitability of the product for its intended use. Liability for any incidental or consequential damage or loss is excluded. The user assumes all risks of the product’s use, handling and storage.
