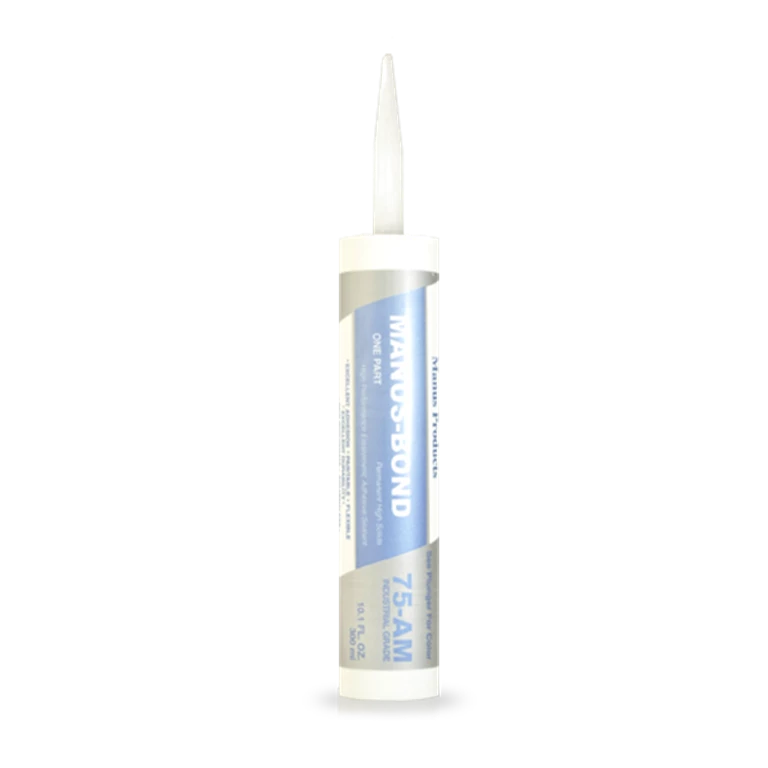

Manus-Bond 75-AM Industrial Grade adhesive applied on various materials including steel and vinyl, highlights its adhesion, weather resistance, and paint compatibility.

Manus-Bond 75-AM UL

Manus-Bond 75AM-UL exhibits excellent adhesion to many substrates including aluminum, brass, steel, Kynar®, Galvalume®, painted surfaces, vinyl, FRP, glass, concrete, marble, OSB, EPS, wood and many plastics. Cures fast, even at low temperatures. Manus-Bond 75AM-UL is highly weather resistant and can be painted with most paints. Manufactured from high grade polyether technology Manus-Bond SIP-seal contains no solvents or isocyanates and is non-yellowing. Conforms to ASTM C920, Type S, Grade NS, Class 50, Use T, NT, I, G and A. AAMA 802.3 Type II Back Bedding Compound. UL 723 Accredited per file BLIS.R25364 Caulking and Sealants. USDA accepted.

Technical Details

Specific Gravity

1.64-1.68

Color

White, Gray, Black

100% Modulus

110 Psi

Hardness (Shore A)

45

Tensile Strength

225 Psi

Lap Shear

275 Psi

Flame Spread

15

Smoke Developed

10

UV Resistance

Excellent

Service Temperature

-75°F To 300°F

VOC Content

9 Grams/Liter

Documentation

Compatible Materials

AluminumBrassConcreteEPSFRPGalvalume®GlassKYNAR500®MarbleOSBPainted SurfacesPlasticsSteelWoodVinyl

Additional Details

Packaging

10.1 and 28fl.oz. cartridges, 10 and 20 fl.oz. sausage packs, 1, 5 and 52 gallon containers.

Surface Preparation

Apply to clean, dry surfaces free of contaminants that can adversely affect adhesion. Remove all old sealant before applying product. Some substrate materials may not be compatible with this product. Testing substrate compatibility with this product before full application is recommended.

Painting

Cured product may be painted with most industrial & consumer paints. Testing prior to painting is recommended.

Storage Life

For maximum shelf life, store unopened product at or below 80ºF.
12 months = cartridges and sausage packs
6 months = 1, 5 and 55 gallon containers

Precautions

Some applications may not be compatible with this product. Testing suitability for intended application before proceeding with full application is recommended. Use with adequate ventilation. Inhalation of vapor during application and cure may cause slight eye or throat irritation. In case of contact with eyes, lips, or mouth, flush thoroughly with water. If irritation persists, consult a physician. Avoid repeated, prolonged contact with skin. See MSDS for additional information. KEEP OUT OF REACH FROM CHILDREN.

Technical Service

Manus technical representatives are always available to provide assistance. Please contact our Technical Service Department with your questions or requests for specific applications.

Limited Warranty

Any goods proved defective will be replaced or the purchase price refunded.  The limited warranty described herin is in lieu of any other warranty, expressed or implied, including any implied warranty of merchantability or fitness for a particular use. The user shall determine suitability of the product for its intended use. Liability for any incidental or consequential damage or loss is excluded. The user assumes all risks of the product's use, handling or storage.
